USB without ArduinoLast update: Thu Jun 5 22:25:41 2025
Software: V-USB http://www.obdev.at/products/vusb/index.html
Hardware: RapideUSB Everything is said : just use that code for ATmel processors, and you can emulate USB stuffs. No need of an Arduino for lightweight projects anymore. However, there's a high cost to enter and tame V-USB. I believe it came at a hard cost of analysis for lots of people for I see few people giving clear samples of how to do stuffs. Worse are the examples of V-USB itself that are not for beginners at all: unclear, not really explained, you have no idea why it works or not. So let me try to bring my help here (and if you don't care, me neither, it will be my cookbook). Golden rule(s) of V-USB: ① There is scarce internet documentation but the latest versions doc is well commented so read it. I was often stucked for hours and the answer was explained nearly in plain text in the file usbconfig.h so just read it carefully ! ② Respect the hardware design, that will be so much trouble you can forget about. The one used here under (Zener diode) has the big advantage to let your MCU run at 5v and to cost nothing in parts. Go for it unless you work in 3.3v and in that case use the other option. Keyboard : Sending characters as a HID (no driver)This is written at the occasion of creating the Finger Password Keyboard, which is my second USB project. I will use this occasion to improve my explanation.LinksA big thank you to the following:
My sample keyboard project UsbKeyboardSample project on GitHub Highlights:

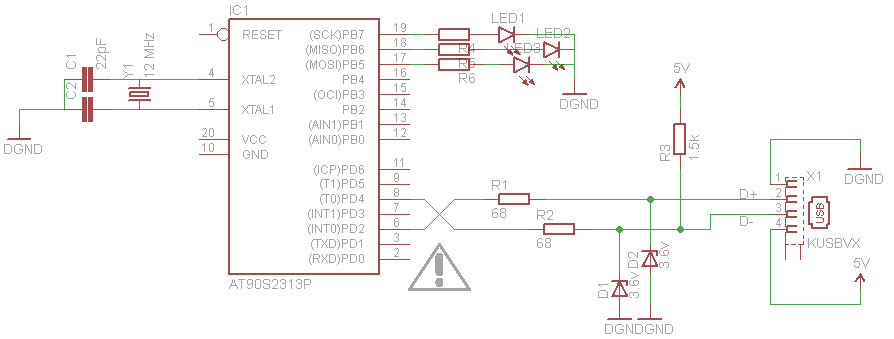

Keyboard : Receiving data from host as a HID (no driver)![]() Basic configuration : with that hardware, you will receive the host reports (project Tricolor USB alert) Option (1): be a Blink(1)This approach works perfectly, though it forbids to to send and receive characters (not a keyboard). A great "thank you !" to the guys at ThingM for their Blink(1) firmware and software code that I adapted to my needs.It's a good thing I tried by myself first, it helped me greatly to understand what I had to change/keep in the thingM.blink(1) firmware. The guys at ThingM made a Blink(1), a small gadget you plug to your PC and that shows notifications through RGB pulse, fade, blink... requires no driver (you bet, it's a proprietary HID), you install a small software that talks to the gadget on your PC and you're done. That's exactly what we need. All the source code firmware and software (host side) is here : https://github.com/todbot/blink1 Source code is on Google SVN, it's tagged. It justs gets one byte message and display it on PORT B of Attiny2313. I change a bit their code to save space and adapt to my needs:
Option (2): implement from scratchThis approach works partially: you get a keyboard, you can receive the Num lock, Caps lock, etc,,, leds status but you can't have a program talk to you. I tried C# and Python, each time I got errors. So unless one day I (or you?) find and fix the issue, consider that this approach doesn't work.Use that tag https://alanarduinotools.googlecode.com/svn/tags/Attiny2313/VUSB_KeyboardReceiver_TricolorUsbSignal You get a project that receives the changes of leds from your PC. It stopped sending characters (I must have mixed something) but in this project I didn't need it so I just removed everything that was linked to it. It's using an ATtiny2313 and there's very few space left (maybe 10%) so beware that if you want to do more than blinking leds you might want a slightly bigger MCU in terms of Flash available. To understand what is it you need, I added a comment [Receive USB: you need this!] everyhere there was a piece of code needed. But in a nutshell, you need the skeleton of the V-USB project plus:
LinksMain sources (thanks to them):
Misc links :
LinksSeems that there is a quite steep learning curve. For instance although my numerous trials and especially errors, it's still not working for me. Let's inspire from other smarter guys to become ourself a smarter gyu:
|
