ARD_AnalogViewer

Input

Connects to the COM port and reads LINE PER LINE (in other works, expects a new line between each values) a STRING (1023, 289, 2) that is interpreted as an int and displayed. Better have your value between 0..1024, don't know the result if you put something else...

Nota bene :

• Port is fixed (sorry, I'm lazy) COM16 ... I'll make it changeable soon
• Baudrate is fixed (same excuse) 115200

The graph is done with the wonderful component zedGraph written in c# and fully free : please use it.

• http://www.codeproject.com/KB/graphics/zedgraph.aspx
• http://zedgraph.org/wiki/index.php?title=Main_Page

Download

Version	23/06/2009
Bin (C# \ .NET 2.0 \ Windows)	ARD_AnalogView.bin.zip
Src (C# \ .NET 2.0 \ Windows)	ARD_AnalogView.src.zip

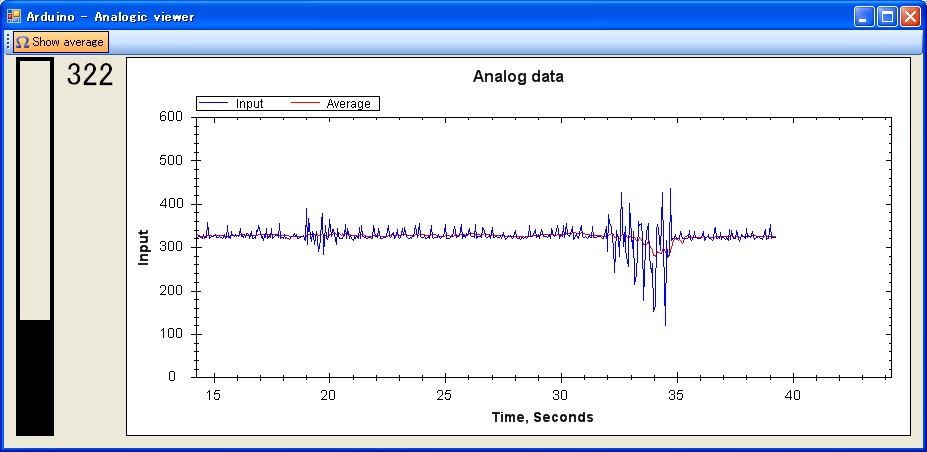

Pictures
